The Sound of Silence: Precision Gearing for Master Spindles
Achieving DIN Class AAA precision to eliminate vibration and whine. High-efficiency solutions for complex internal gears.
Our strengths
Nobeve provides reliable gear tools with complete service
Cost-Effective Solutions
Reliable replacement strategies that reduce cost per part without giving up precision.
Strict Delivery Schedule
Responsive planning for standard tools, custom projects, and urgent production needs.
Technical Support
Application guidance for cutting parameters, tool selection, and troubleshooting.
Technical focus
Key points for Machine Tool
The Sound of Silence: Precision Gearing for Master Spindles
Achieving DIN Class AAA precision to eliminate vibration and whine. High-efficiency solutions for complex internal gears.
The Heart of the Mother Machine
Machine tools, the "Mother Machines" of industry, dictate downstream manufacturing quality through their inherent precision. Accurate gear transmissions are vital within CNC centers and lathes.
Spindle Gearbox

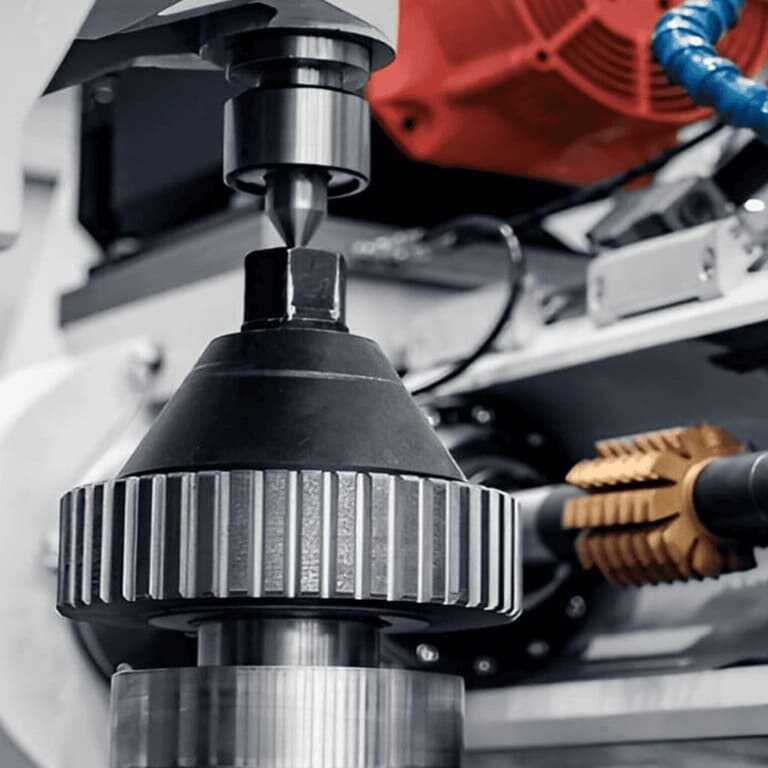

Converting motor speeds into cutting torque involves gear rotations up to 12,000 RPM. Microscopic profile errors trigger high-frequency resonance, necessitating superior gear surface integrity to ensure silent, vibration-free operation.
Feed Drive Systems
Servo-driven reduction mechanisms require exceptional rigidity and zero backlash. These gears facilitate precise lead screw rotation, maintaining the repetitive positioning accuracy and dynamic response essential for modern CNC machining.
Internal Cluster Gears
Compact headstock designs utilize integrated cluster gears with narrow clearance zones. These complex structures demand precise internal profiles to ensure smooth gear shifting and reliable power transmission in space-constrained environments.
Expert Technical FAQ
Frequently Asked Questions
Why is "Waviness" (ffα) so critical for machine tool spindle gears?
The issue of waviness cannot be resolved by the cutting tool alone; it requires Fourier analysis.
Can your W-Series Skiving Cutters machine fully hardened gears (HRC 60)?
We recommend W-Series for materials up to HRC 50 (Pre-hardened or Green machining). While solid carbide is hard, the complex geometry of skiving small internal gears requires a balance of hardness and toughness to prevent breakage. For HRC 60 external gears, we recommend our G-Series Hobs ; for HRC 60 internal gears, grinding is still the safest process for highest precision.
Can Hard Hobbing with G-Series really replace Gear Grinding?
It depends on the application. For Main Spindle gears requiring DIN 4-5, Grinding is still necessary. However, for Feed Drive or Auxiliary gears where DIN 6-7 is acceptable, our G-Series Hard Hobbing is a perfect substitute for materials up to HRC
We have a stepped gear where the hob hits the shoulder. Can you help?
This is a classic “Interference” problem. A standard hob has a large diameter and will collide with the shoulder. We recommend switching to Power Skiving (W-Series) . The skiving cutter works at a crossed-axis angle (typically 20°), which naturally tilts the tool away from the shoulder, allowing you to machine gears right up to a wall.
What is the benefit of "Solid Carbide" Skiving tools over "Indexable" ones for machine tools?
Accuracy and Size. Indexable tools (with inserts) introduce assembly errors and are too bulky for small modules. For machine tool internal gears (often Module < 3), Nobeve's W-Series Solid Carbide monoblock design provides superior stiffness and precision, ensuring the gear has no taper or pitch error.
Why do you specify "Alcrona Pro" coating for spindle gears instead of TiN?
TiN is outdated for high-precision. Alcrona Pro (AlCrN) is smoother and thinner. A thick or rough coating would ruin the AAA geometry of the hob substrate. Alcrona Pro provides the necessary heat resistance while maintaining the razor-sharp edge definition required for a mirror-finish cut.
Can Skiving be done on our existing Gear Hobbing machine?
Generally, No. Power Skiving requires a machine with extremely high spindle synchronization (electronic gearbox) and high RPM. Standard hobbers lack the necessary stiffness and speed for the skiving process. You typically need a dedicated Skiving machine or a high-end Multi-tasking Turn-Mill center.
Is "Dry Cutting" possible for high-precision machine tool gears?
Yes, and it's preferred for K-Series. Coolant can cause “thermal shock” to carbide at high speeds, leading to micro-cracks. Dry Cutting allows the heat to be evacuated with the chips. However, for the absolute highest surface finish (Ra < 0.2), oil cooling is sometimes used to flush away micro-chips, but K-Series is fully optimized for Dry.
Application areas
Explore more manufacturing applications
Testimonials
What Our Client’s Say
T.S.
Spindle R&D Lead
“Spindle whine was our biggest headache. We tested Nobeve's K-Series AAA hobs. The surface finish improved to Ra 0.32 directly after hobbing, and the noise level dropped by 5dB. The 0.2µm substrate makes a real difference.”
M.B.Production Engineer
Customer

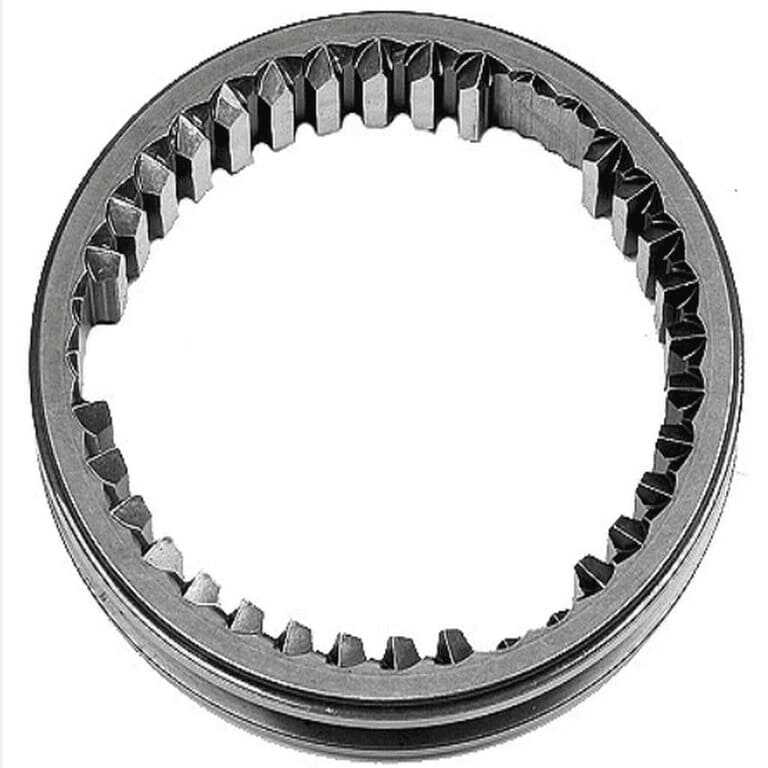

“We used to shape our internal shifting sleeves, which took 12 minutes per part. Switching to Nobeve's W-Series Skiving cutter on our Mill-Turn center reduced the time obviously. The productivity gain for these pre-hardened parts is massive.”
C.L.
Supply Chain Manager
“For our servo gears, the G-Series Hard Hobbing solution allowed us to skip the grinding process for our Tier-2 product line. It handles HRC 60 steel surprisingly well, reducing cost per part a lot.”
