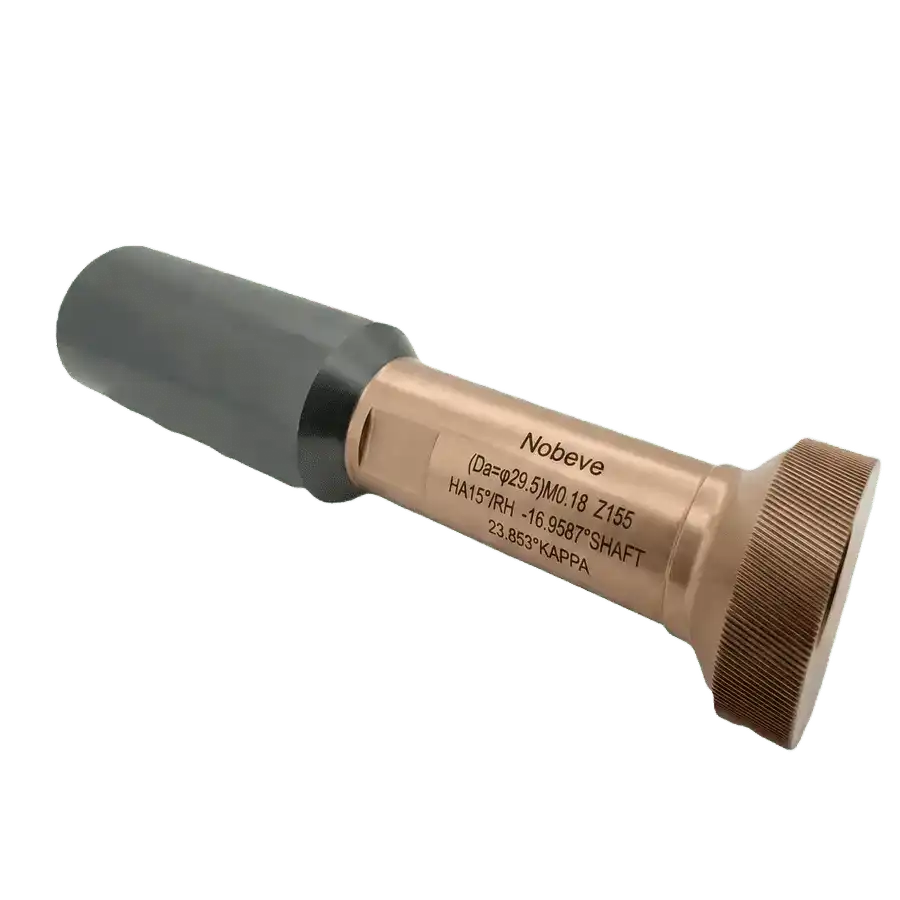

W-Series Solid Carbide Power Skiving Tools
Stop letting internal gear cutting be the bottleneck of your production line. The Nobeve W -Series is engineered to replace slow reciprocating shaping and expensive broaching. Designed for modern multi-tasking Turn-Mill centers, our solid carbide skiving cutters allow you to finish gear profiles on the same machine as turning operations—ensuring superior concentricity and slashing cycle times
Nobeve Tool
W-Series Solid Carbide Power Skiving Cutters
Stop letting internal gear cutting be the bottleneck of your production line. The Nobeve W -Series is engineered to replace slow reciprocating shaping and expensive broaching. Designed for modern multi-tasking Turn-Mill centers, our solid carbide skiving cutters allow you to finish gear profiles on the same machine as turning operations—ensuring superior concentricity and slashing cycle times
Our strengths
Nobeve provides reliable gear tools with complete service
Cost-Effective Solutions
Reliable replacement strategies that reduce cost per part without giving up precision.
Strict Delivery Schedule
Responsive planning for standard tools, custom projects, and urgent production needs.
Technical Support
Application guidance for cutting parameters, tool selection, and troubleshooting.
Technical focus
Key points for W-Series Solid Carbide Power Skiving Tools
W-Series Solid Carbide Power Skiving Cutters
Stop letting internal gear cutting be the bottleneck of your production line. The Nobeve W -Series is engineered to replace slow reciprocating shaping and expensive broaching.
Efficiency Redefined
Skiving vs. Shaping Leveraging the continuous cutting kinetics of Power Skiving, the W-Series outperforms traditional shaping by significantly reducing cycle times.
Workflow Synergy
Turn-Mill Integration Compatible with Mill-Turn centers, these cutters enable "Done-in-One" manufacturing.
Engineered Endurance
Solid Carbide Core Built from a dense Tungsten-Cobalt substrate, the W-Series offers superior hardness compared to PM-HSS.
Geometric Freedom
Access Complex Profiles Available in cylindrical and conical profiles, the W-Series excels at machining gears with interference contours or limited over-travel clearance.
Expert Technical FAQ
Frequently Asked Questions
Can Power Skiving replace my slow gear shaping process?
Yes. By switching to our W-Series, you can utilize cutting speeds of 120–300 m/min. Unlike the reciprocating stroke of shaping, Power Skiving is a continuous process that typically increases production throughput by 3x to 5x for internal gears while maintaining DIN AA precision.
Do you have a solution for internal gears with interference angles?
Absolutely. We recommend our Conical W-Series cutters. Their specific conical geometry creates the necessary clearance to machine gears with small cross-axis angles (interference angles) without colliding with the workpiece shoulder.
Can the W-Series machine external gears close to interference shoulders (Cluster Gears)?
Yes. This is a key advantage over skiving. The Conical W-Series design allows for a flexible cross-axis angle, enabling you to machining stepped gears right next to a larger gear or shaft shoulder where a standard large-diameter hob would physically interfere.
How can I prevent chipping on solid carbide skiving cutters?
Rigidity is key. The W-Series uses a high-hardness Tungsten-Cobalt substrate, which requires a stable machining environment. We strongly recommend using rigid, direct-drive CNC spindles to prevent vibration (chatter), which is the primary cause of chipping.
Can I run Nobeve carbide skiving cutters dry (without coolant)?
Yes,but we dont't recommend it . Dry cutting with W-series has strictly requirement with the machine tool. Skiving involves high sliding friction, and high-pressure oil is essential to lubricate the cutting edge and flush away chips immediately to protect the BALINIT® ALTENSA coating.
What is the recommended cutting speed for the W-Series?
We recommend a cutting speed (Vc) of 120–300 m/min and a feed rate of 0.2–0.5 mm/rev. These parameters optimize the performance of the carbide substrate, balancing thermal stability with efficient material removal.
Do you provide regrinding parameters for local maintenance?
Yes. To save on logistics, we do not require shipping tools back. Instead, we provide a full Technical Data Package (DXF profiles and edge preparation specs) with every order, allowing your local coating center to restore the tool to Nobeve factory standards.
Are these tools compatible with Turn-Mill (Multi-Tasking) centers?
Yes. The W-Series is designed for both dedicated Power Skiving machines and Turn-Mill composite machines. This allows you to complete turning and gear cutting in a single setup (“Done-in-One”), minimizing run-out errors.
Related tools
Explore more Nobeve gear cutting tools
Testimonials
What Our Client’s Say
Hans W.
Production Manager Automotive Transmission
“Nobeve’s W-Series slashed our cycle times a lot compared to traditional shaping. Running at 250m/min with oil cooling, these tools maintain DIN AA precision consistently. A highly recommended solution for stable, high-speed power skiving setups.”
Michael R. Senior EngineerIndustrial Gearbox Manufacturer
Customer
“We struggled with a compact shaft design until Nobeve provided a custom Conical W-Series cutter. The specific conical geometry provided the necessary clearance to avoid shoulder collisions. Even on 20CrMnTi, the solid carbide remains tough with no micro-chipping.”
Rajesh P. Supply Chain DirectorPrecision Components Plant
Customer
“The W-Series’ throughput justifies the investment. At 180m/min, the Tungsten-Cobalt alloy maintains exceptional edge retention with significantly fewer tool changes per shift. For high-volume lines, the improved machine uptime makes this a much more cost-effective solution than traditional PM-HSS.”
